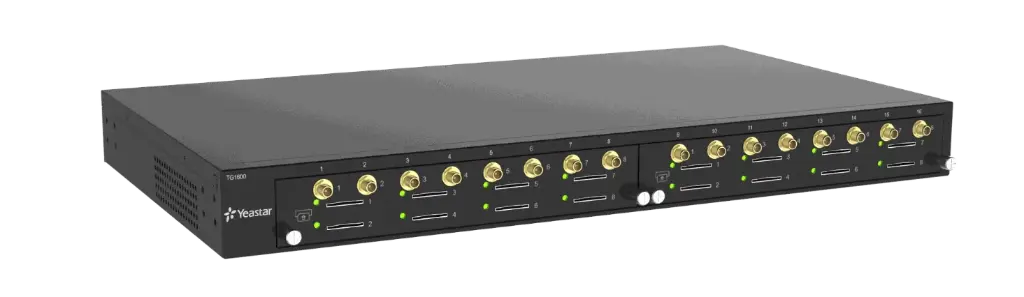

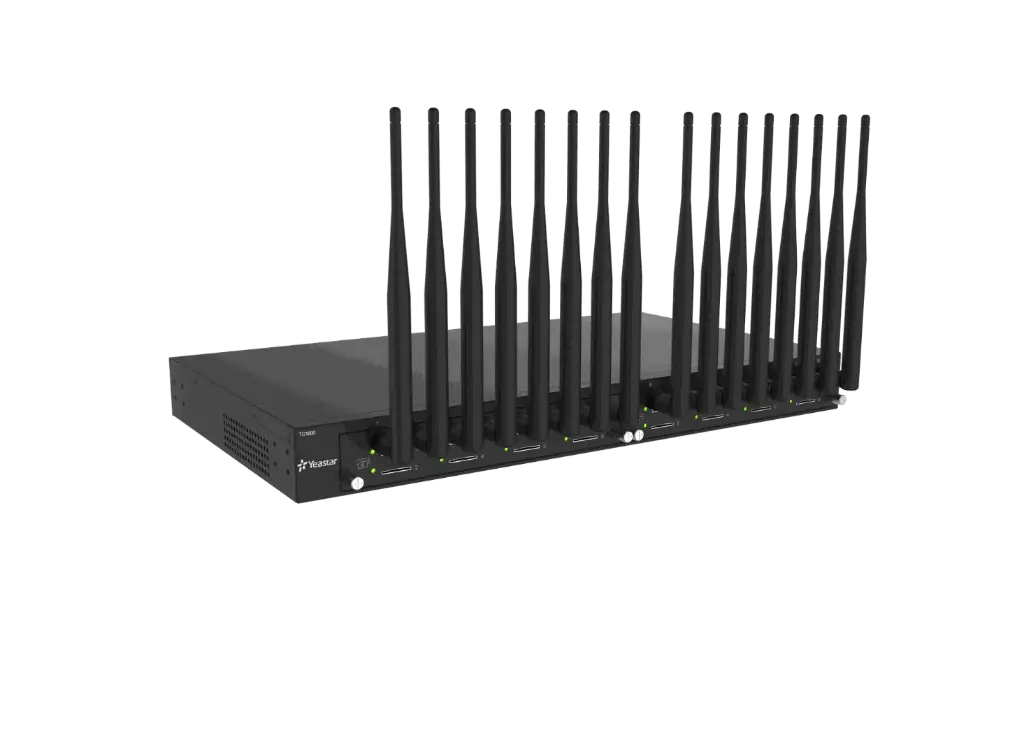

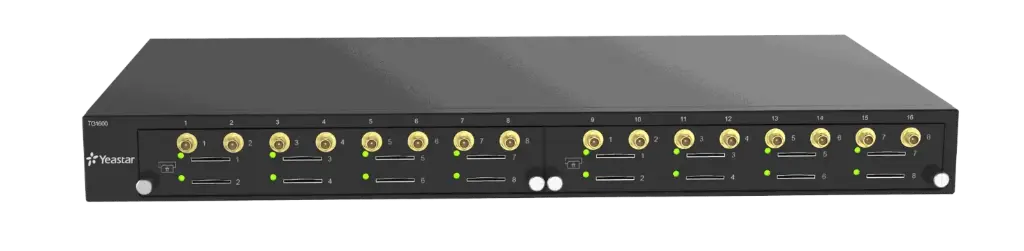

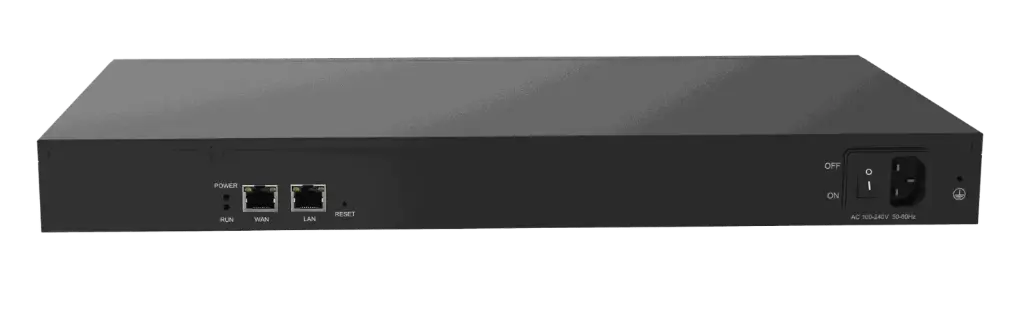

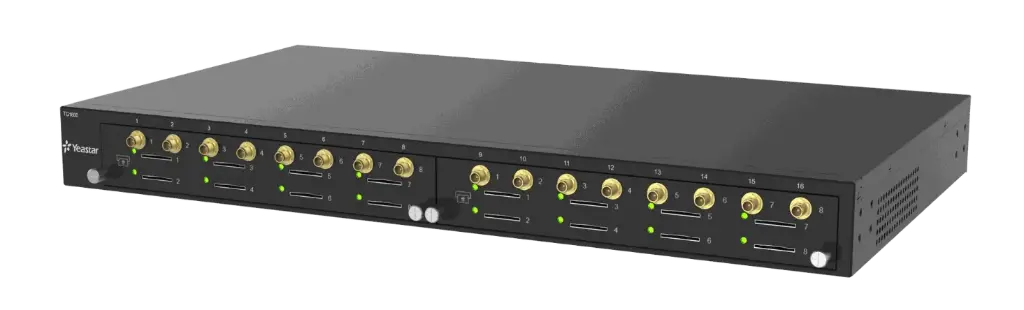

Yeastar TG1600 GSM VoIP Gateway

The Yeastar TG1600 VoIP GSM Gateway offers 16 GSM channels for seamless connectivity with IP PBX systems. Supporting GSM, WCDMA, and 4G LTE frequencies, it enables cost-effective communication via SIP or IAX2. Ideal for businesses needing backup for landlines or mobile-to-mobile calls, it features a user-friendly web interface, SMS capabilities, call routing, and Least Cost Routing (LCR). With excellent voice quality and easy setup, the TG1600 is a versatile communication tool.

Yeastar Kenya Yeastar VoIP Gateways Yeastar TG Series
0.00 KSh 0.00 KSh
237,750.00 KSh

Add to cart
Buy now
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
Yeastar_TG_Series Datasheet

Yeastar TG1600 GSM VoIP Gateway

The Yeastar TG1600 VoIP GSM Gateway is a powerful communication device featuring 16 GSM channels for connecting IP PBX systems to GSM/CDMA networks. It supports various mobile frequencies, including GSM, WCDMA, and 4G LTE, ensuring broad compatibility. With support for SIP and IAX2 protocols, along with multiple voice codecs like G.711 and G.729A, it delivers excellent voice quality.

Key features include Least Cost Routing (LCR), call routing, call transfer, and SMS capabilities, making it ideal for businesses seeking efficient communication solutions. The TG1600 also offers robust network management options such as Static IP, DHCP, and QoS, and is easy to install via a web-based GUI. Compatible with systems like Asterisk and 3CX, it is a reliable and cost-effective GSM VoIP gateway for any business.

Yeastar TG1600 details

Features and Specifications

Interfaces

  • 16 x 10/100 Mbps Ethernet Interfaces
  • 2 x GSM/WCDMA Ports
  • 2 x HD Content Input (HDMI + Mini-DP)
  • 1 x Line-in (3.5mm), 1 x Line-out (3.5mm)

Telephony Features

  • Voice Codecs: G.711 (alaw/ulaw), G.726, G.729A, GSM, ADPCM, Speex
  • DTMF Mode: RFC2833, SIP Info, In-band
  • Echo Cancellation: ITU-T G.168 LEC
  • Calling Type: Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP)

Call Routing & Management

  • Incoming/Outgoing Routing Rules
  • Carrier Selection: Auto/Manual
  • Call Back
  • Call Duration Limitation

System Administration & Maintenance

  • Firmware Upgrade via HTTP/TFTP
  • Network Attack Alert
  • System Logs
  • Open API for SMS and USSD

Advanced Features

  • SIP Peer Mode: Supported
  • SIP Server for IP Phones: Supported
  • Call Transfer
  • Session Timer

Package Contents

Your Gateway Box comes with:

Your VoIP Gateway

  • TG1600 VoIP Gateway console

Accessories

  • Power Cable - AC 100~240V/50~60Hz (DC 12V, 1A)
  • Ethernet Cable
  • 1x Antenna

Additional Items

  • User Guide Manual
