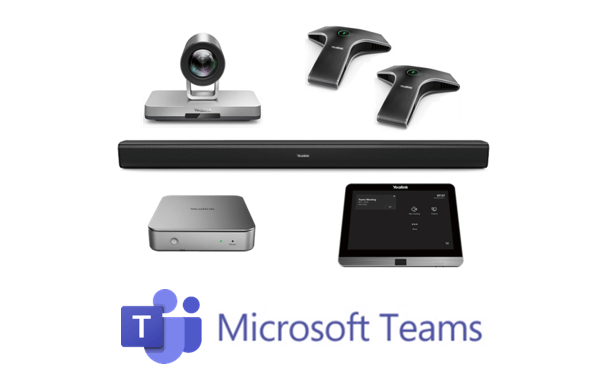

Yealink MVC800 II Microsoft Teams Room System

The Yealink MVC II series is a bundle video solution for Microsoft Teams Rooms (MTR) that includes everything you need to interact, connect, and collaborate with internal and external users seamlessly and intelligently, covering every scenario from small to extra-large spaces. Yealink MVC800II is a dedicated MTR room system for medium and large meeting rooms, including two or three VCM34 array microphones (up to 4 units can be connected), a UVC80 USB PTZ camera, Mtouch II and MCore mini-PC to meet the requirements of your Teams meeting.

Yealink MVC800 II Teams Room system
0.00 KSh 0.00 KSh
578,525.00 KSh

Add to cart
Buy now
Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days
Contact Us
Documents
MVC800 II Datasheet.pdf

Yealink MVC800 II Microsoft Teams Room System

The Yealink MVC II series is a user-friendly video conferencing solution designed specifically for Microsoft Teams Rooms. It offers a comprehensive solution for meeting rooms of all sizes, from small to large. To accommodate the diverse needs of different meeting spaces, a high-performance mini-PC has been developed. This mini-PC prioritizes both aesthetics and functionality, seamlessly integrating cable management for a flexible and reliable deployment.

The MVC II series boasts a native Microsoft Teams-optimized user interface, requiring minimal training. Users can simply walk into a meeting room and join scheduled Teams or Skype for Business meetings with a single touch. The Yealink MVC800 II, tailored for medium to large rooms, includes two or three VCM34 array microphones (expandable to four) and a UVC80 USB PTZ camera with 12x optical zoom.

Yealink MVC800 II Products

MCore Mini-PC

  • 8th-gen Intel® QUAD-CORE i5
  • Memory: 8GB (2 x 4GB)
  • Storage: 128GB SSD
  • 2 x HDMI video output with CEC supported
  • Bluetooth and Wi-Fi
  • 1x Yealink VCH port, connect to MTouch II
  • 4 x USB3.0 Type-A
  • 1 x 10/100/1000M Ethernet port
  • 1 x Power port
  • 1 x Security lock slot
  • Built-in cable management

MTouch II panel

  • 8-inch IPS screen
  • 1280 x 800 resolution
  • 10-point capacitive touch screen
  • 3.5mm headset jack
  • Human Motion Sensor
  • Angle adjustable bracket (28° ~ 50°)
  • 1080P/30FPS FHD for sharing
  • Support wired and wireless content sharing
  • Built-in Wi-Fi AP for Yealink wireless presentation device
  • HDMI/USB-C video input

UVC80 PT​Z Camera

  • 1920 x 1080 video resolution
  • 60 frame rate
  • 12x optical zoom
  • Field of view (diagonal): 78.5°
  • Auto-framing
  • Camera presets
  • Pan range: 200°
  • Tilt range: 60°
  • 1 x Line-in (3.5mm)
  • 1 x Line-out (3.5mm)
  • 1 x Yealink Microphone port (RJ-45)
  • 1 x USB 2.0 Type-B
  • 1 x USB 2.0 Type-A
  • 1 x Power port
  • 1 x Security lock slot
  • 1 x Reset slot

CPW90 Wireless Mics

  • DECT technology, up to 50 meters distance
  • 10ft (3-meter) voice pickup range of every microphone unit
  • Supports up to 4 wireless microphone units
  • Built-in Li-battery, 11 days standby, 19 hours talking time
  • Charging cradle, charging any time

VCM34 Array Mic

  • Built-in 3-microphone array
  • 360° 20ft (6-meter) voice pickup range
  • Cascade connection up to 4 units
  • Mute button with bicolor LED

Yealink Soundbar

  • Frequent response：100Hz - 20KHz
  • S/N：≥70dB
  • 1 x Line-in (3.5mm)
